Our Contractor Grade ratchet crimp tool is designed for professional installers using SPEEDY RJ45 and similar feedthrough plugs. This high-quality tool offers excellent value and has been specially designed to ensure that SPEEDY RJ45 terminations are not only faster than using conventional plugs but also consistent, reliable, and repeatable.

​





​































​

​

​

​

​

Click here for drawing





Features

​

• Crimps SPEEDY RJ45 Category 5, 6 and 6A 8p8c plugs

• Crimps and trims surplus wires in a single operation, with a neat, flush finish

• Releasable ratchet action ensures consistent crimps

• Built-in cutter and stripper caters for both flat and round cables

• Dual-colour grips enhance comfort and consistent terminations

• ALSO - crimps standard 8p8c (RJ45) Category 5 and 6 plugs

​

​

Specifications

• Materials:

  • Tool body: heat-treated carbon steel

  • Blades: tool steel

  • Handles: thermoplastic rubber and polypropylene


• Colour: red/black


• Weight: 330g approx

​

​

Product code: TRCSPDY4

​

​

Packaging

• Supplied in individual white box then in carton of 20



​

​

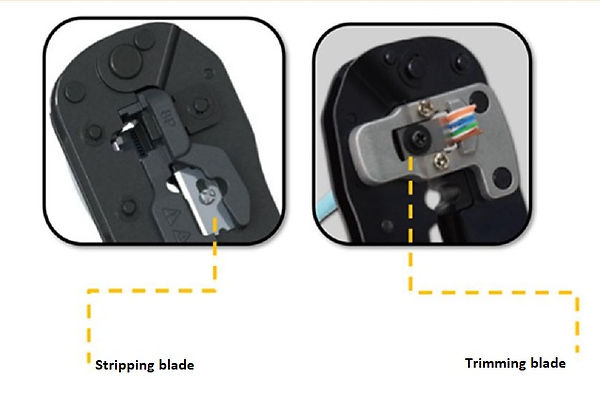

Replacement Blades (TBSPDY4)



Supplied as a set of two blades, one for cutting and stripping cable and one for trimming off surplus cores, this replacement blade kit ensures that crimping performance levels are maintained throughout the life of the SPEEDY RJ45 crimp tool. Note: It is recommended that the trimming blade is renewed after every 500 terminations

​

​

​

​

​

​



















​



















































Features

• •    High performance trimming blade guarantees a flush wire trim of surplus conductors.
  •    Cutting and stripping blade enables convenient terminations without need for additional tooling.

​

Specifications

• Material: tool steel


Product code: TBSPDY4#10

​

Packaging:

• Supplied in a set of 2 blades, then in packs of 10

​

​

​

​

​

​

​

​
